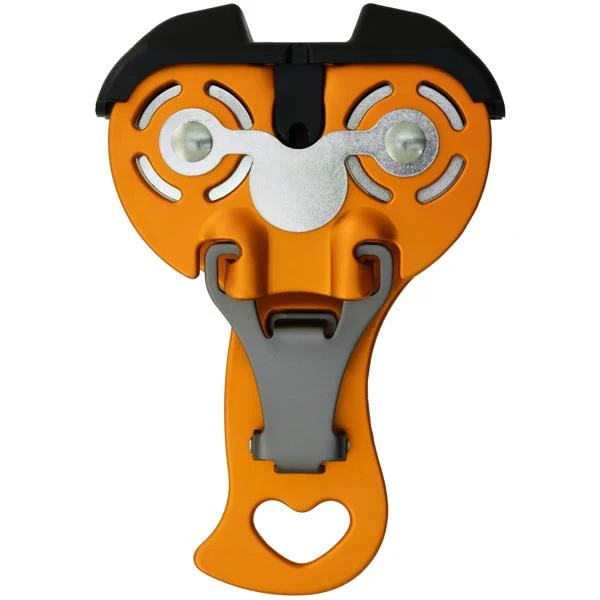

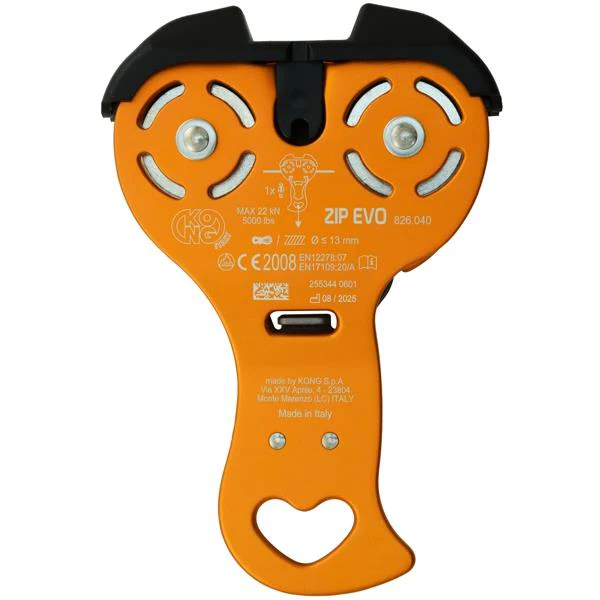

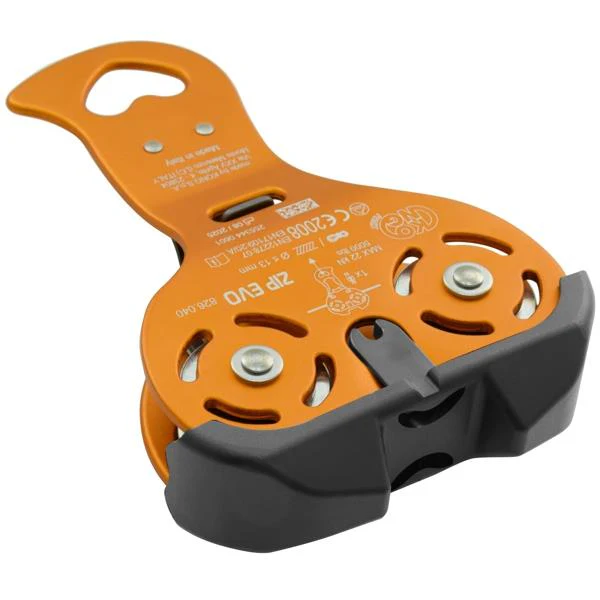

ZIP EVO

DOUBLE PULLEY | INTEGRATED CONNECTOR

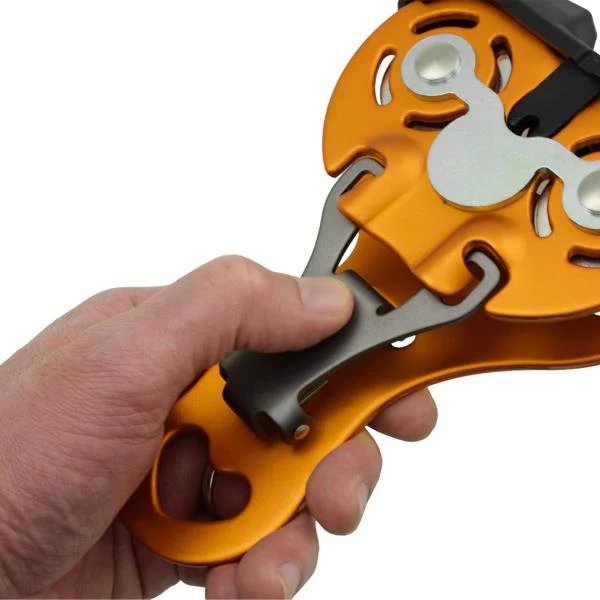

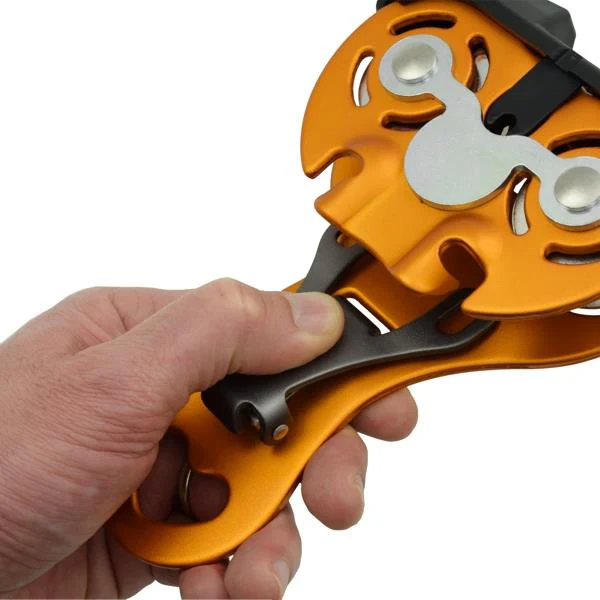

Evolution of the first pulley with an integrated connector which eliminates any possibility of error. Improved handle ergonomics and simplicity of use thanks to the new lever which can be opened with one hand. The special design ensures correct positioning on the rope in any situation. Equipped with ball bearings for perfect smooth rolling.

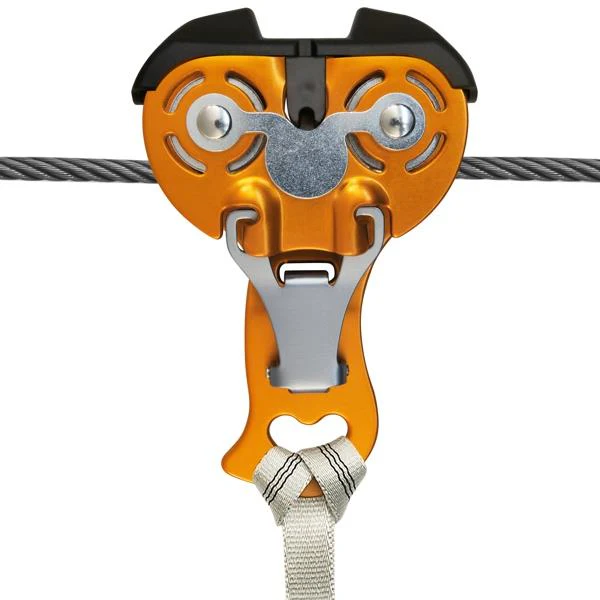

It works on both ropes and metal cables up to 13 mm in diameter.

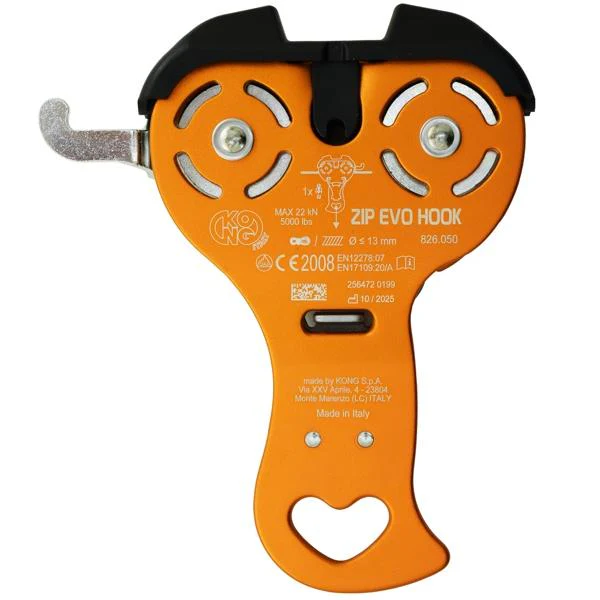

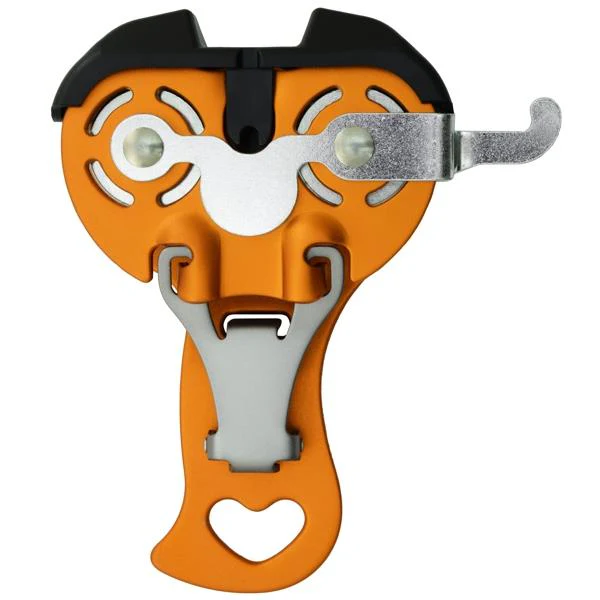

Available ZIP EVO HOOK version, with a hook for hanging connectors, avoiding the wear caused by allowing the connectors to slide along the metal cable (#826050400KK).

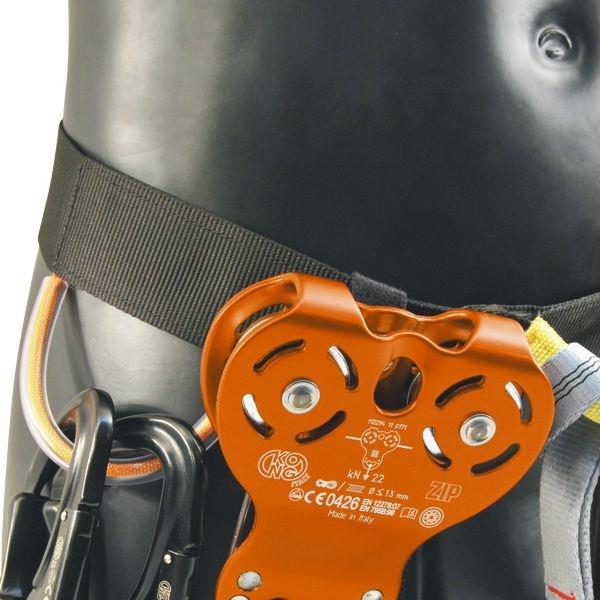

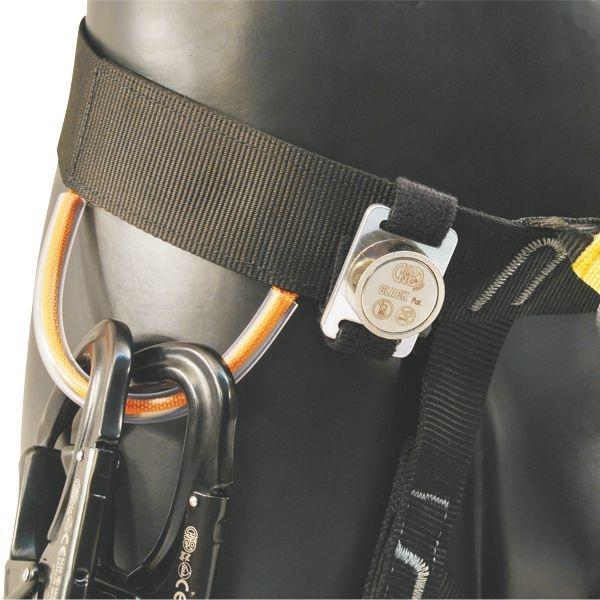

It can be carried on the harness using the ingenious Clack magnetic system (#223000000KK).

High quality product, made in Italy!
Patented.

Conform to the requirements of the norm EN 17109, it is usable as a category A mobile connecting device.
It integrates perfectly into the Coudou Pro ZAZA series.

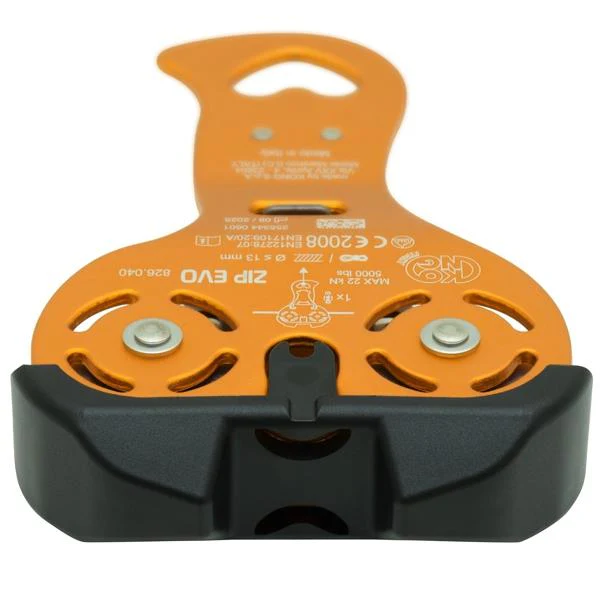

ZIP CAP #826060000KK Top protection that prevents the inadvertent introduction of fingers into the rotating elements of the pulleys (as required by the norm EN 17109), standard supplied!

Standards - EN 12278, EN 17109
Material - Alu Alloy, Steel (Wheel)
Efficiency - 95%
Load - 22 (5000 lbs)
Ball Bearing - Yes
Bush - No
Main Dimension - 170mm
Max Rope Diameter - 13mm
