Klein VDV501-851 Scout Pro 3 Tester Starter Kit

INCLUDES:
• (1) Scout Pro 3 Tester
• (1) Self-Storing Remote

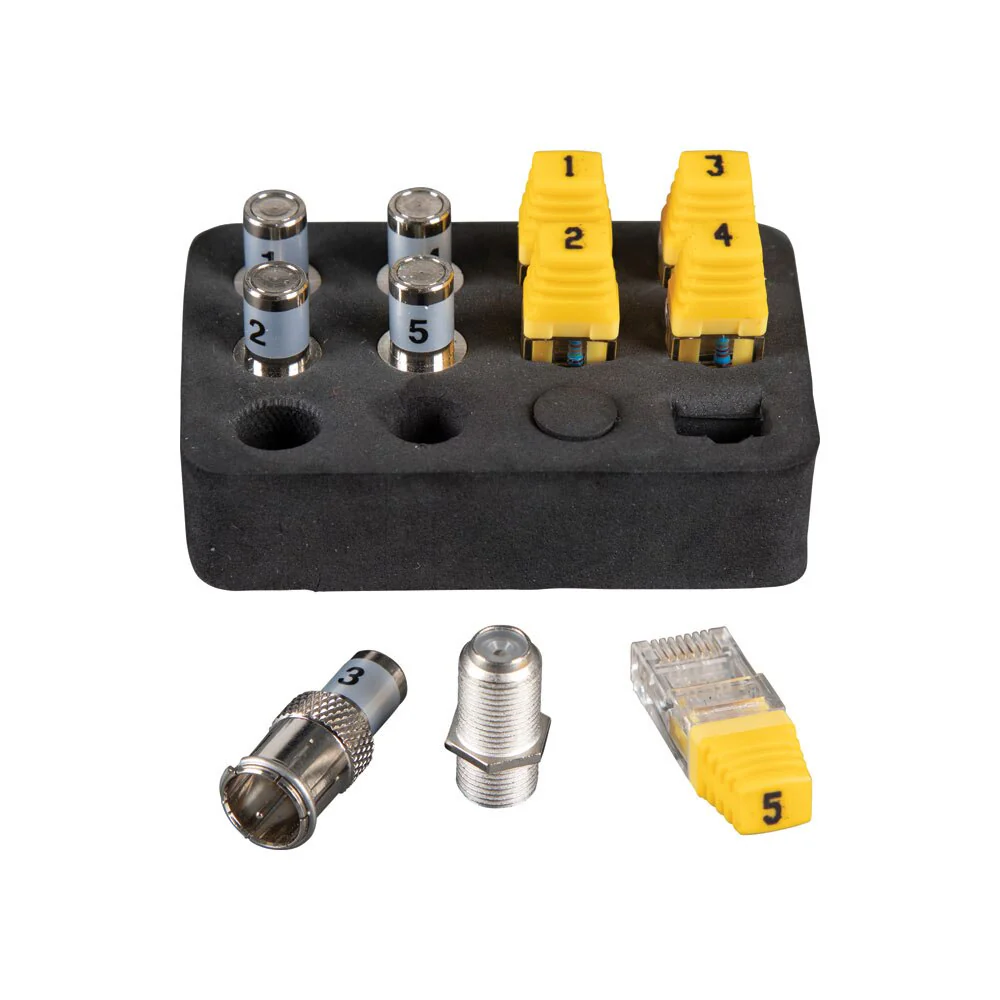

• (5) LanMap RJ45 Locator Remotes
• (5) CoaxMap F-Connector Locator Remotes
• (1) Coax F-Connector
• (1) Manual
• (1) 9V Battery

FEATURES:
• Test voice (RJ11/12), data (RJ45) and video (coax F-connector) terminated cables with clearly defined results
• Measure cable length (up to 2,000 feet)
• Test for Open, Short, Miswire or Split-Pair faults
• Backlit LCD screen displays cable length, wiremap, cable ID and test results
• Trace cables, wire pairs and individual conductor wires with multiple style tone generator (requires analog probe Cat. No. VDV500-123; sold separately)
• Hub blink mode to identify port location on a hub or a switch
• LanMap™ and CoaxMap™ Location Remotes (5 each) map and ID multiple cable runs in a single step
• Includes voltage warning, shield detection, auto power off, low battery indicator and a self-storing remote
• Auto Power-off feature to conserve battery life (9V included)

SPECIFICATIONS:
• Type: Twisted Pair, DATA, Voice, LAN, and Coaxial
• Application: Cable Testing
• Special Features: Measures Cable Length; Backlit LCD; Hub Blink
• Cable Type: Shielded or Unshielded; Cat7a, Cat7, Cat6a, Cat 6, Cat5, Cat5e, Cat3, Coaxial
• Overall Length: 7" (17.8 cm)
• Overall Height: 3" (7.6 cm)
• Overall Width: 1.25" (3.2 cm)
• Material: Plastic and Metal
• Test-n-Map ID Remotes: (1) Self-Storing
• Location ID: (5) LanMap RJ45 Locator Remotes, (5) CoaxMap F-connector Locator Remotes
• Batteries: 9V Alkaline
• Battery Life: 50 Hours Active
• Drop Protection: 2 m
• Supported Remotes: 18
• Connection & Adapter Types: RJ11, RJ12, RJ45, Coax F
• Display: Backlit LCD
• Multiple Style Tone Generator: Yes (5); Requires Tracing Probe (Cat. No. VDV500-123); Sold Separately
• Faults Detected: Open, Short
• Test & Measure Types: Ethernet / Data and Coaxial

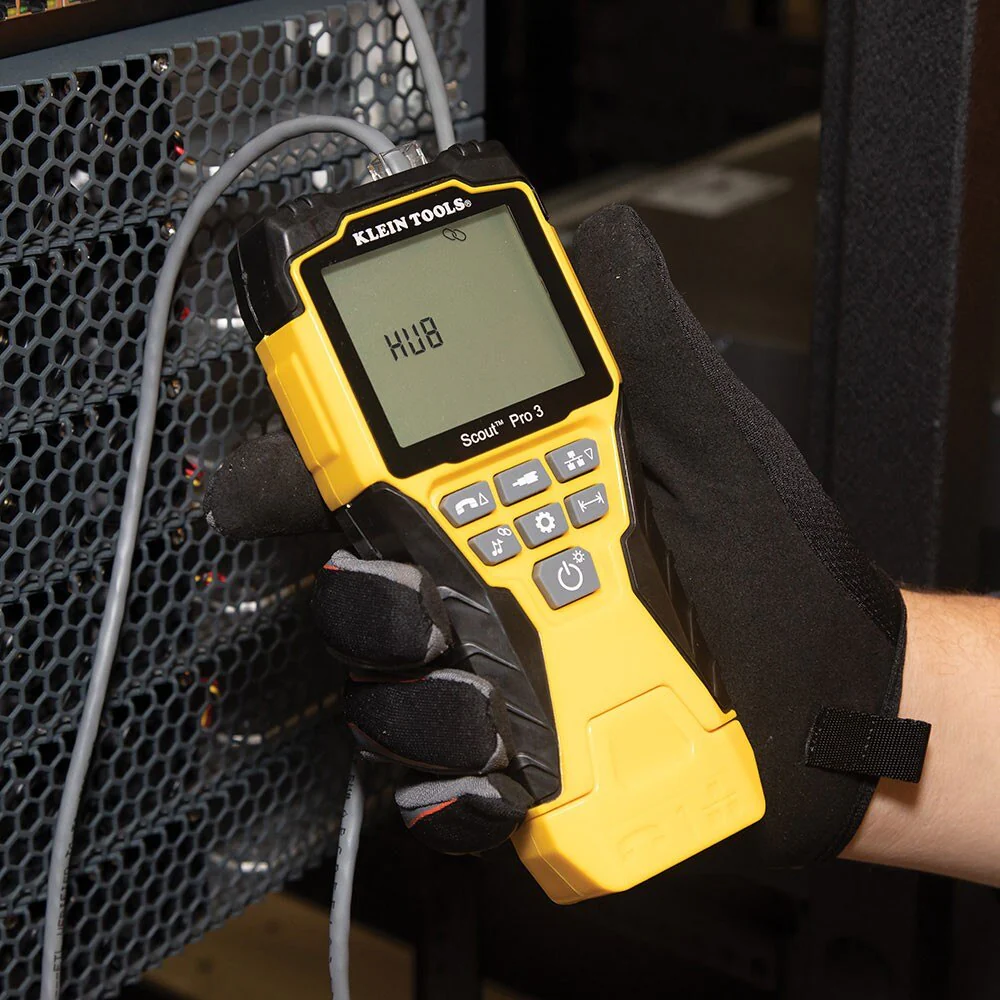

The Scout® Pro3 Tester Starter Kit is a versatile voice/data/video cable tester that locates and tests voice, data and video cables. Identify multiple cable runs with included location mapping remotes. This kit verifies accurate cable installations can ensure fast and accurate cable installations each time. Backlit display assists in reading results in lower light.
