AD40 small thread adapter

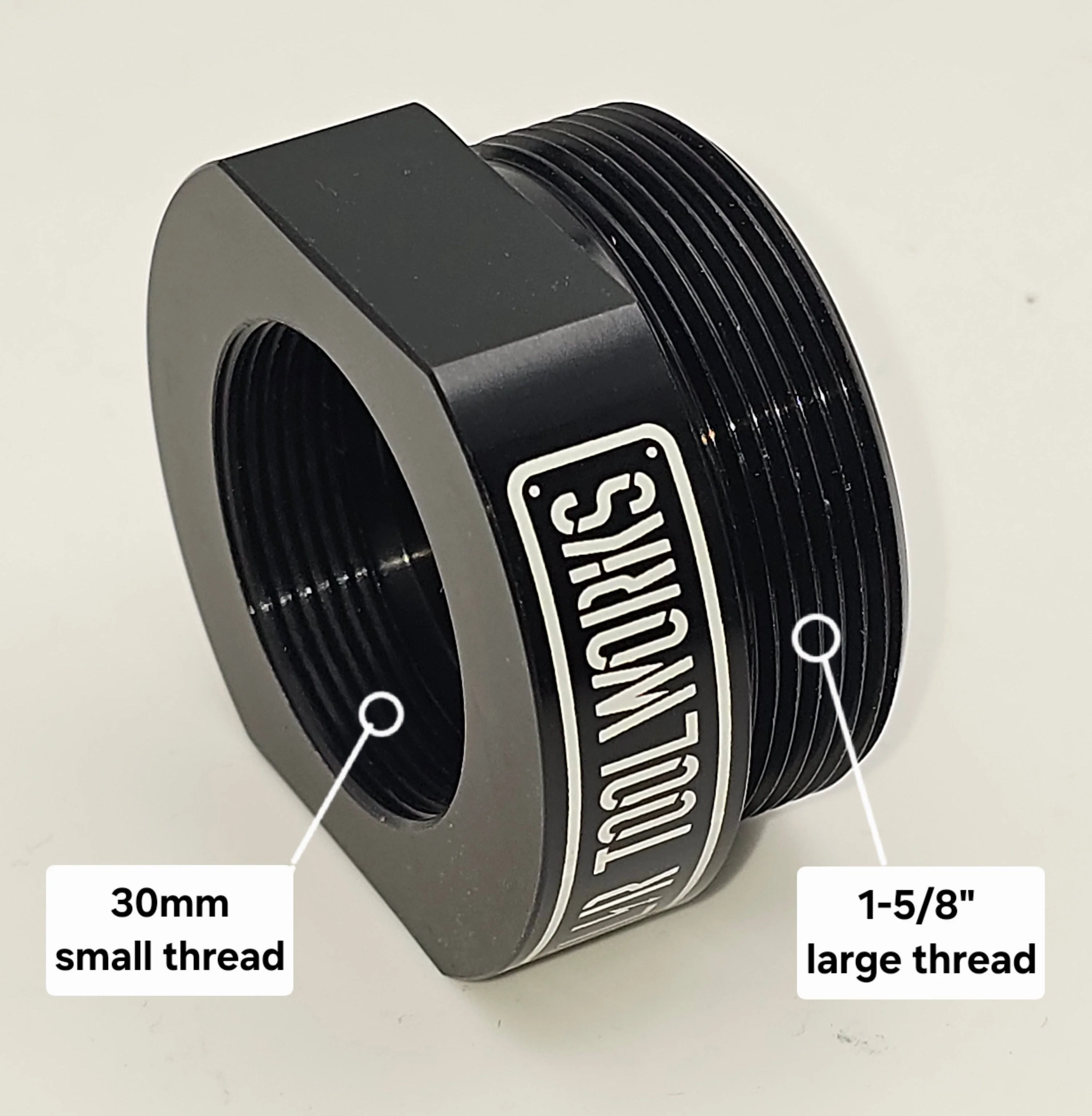

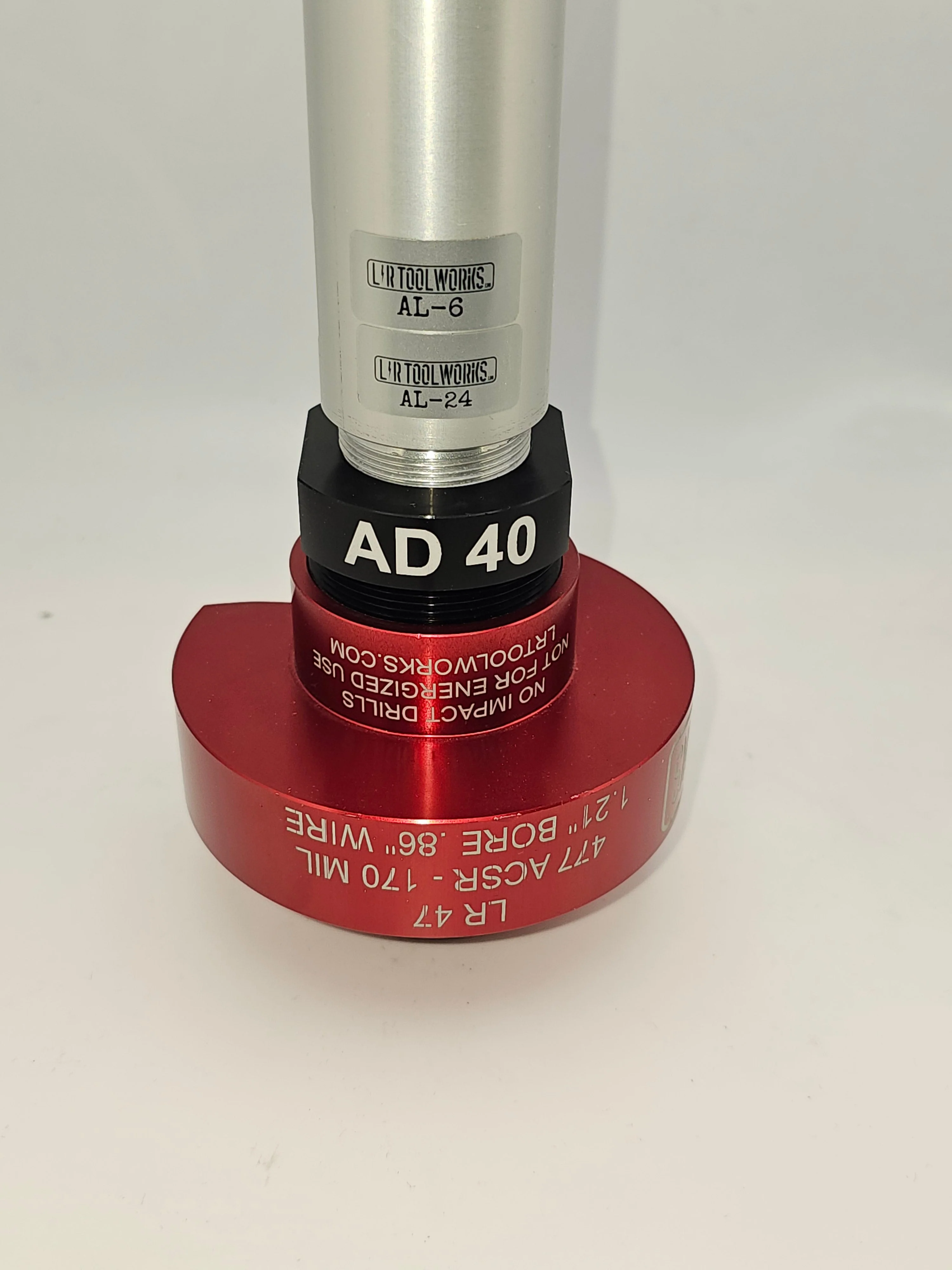

This adapter will allow the user to attach the CF24, AL6 or AL24 to any of our large body heads. Such as the LR30xl or LR47. One side is the female smaller 30mm thread and the opposite side has the male 1-5/8 thread.

Basic description 30mm female thread to 1-5/8 male thread adapter. OAL; 1", DIA; 1.98", BORE; .875", WRENCH FLAT DIA; 1.625"

PLEASE NOTE THE ID OF THIS UNIT IS .875". THE MAX THAT WILL PASS THRU IS 477ACSR AT .86". IF YOUR BARE CONDUCTOR IS BIGGER THAN THIS IT WILL NOT PASS THROUGH.
